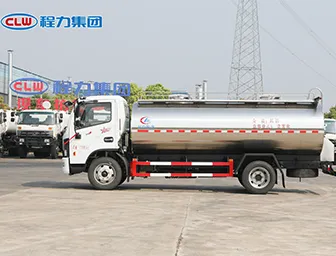

Chengli Fresh Milk Transport Vehicle

    Chengli Fresh Milk Transport Vehicle

    The Chengli Fresh Milk Transport Vehicle is designed for safe and efficient transportation of fresh milk. With its food-grade material and advanced insulation system, it ensures the milk maintains the required temperature during transit, keeping it fresh and safe for delivery to dairy processing plants or retail outlets.
  • Share:
  • Contact us Inquiry

Chengli Weichai – Van-type Transport Vehicle

  • Product Model: CLW5120GNYD6

  • Overall Dimensions: 6900 × 2350 × 2800 mm

  • Water Tank Capacity: 8500L

  • Cistern Dimensions: 4750 × 2100 × 1400 mm

  • Nominal Load Weight: 6600 kg

  • Total Equipment Weight: 5200 kg


  • Compartments: 2 compartments evenly distributed

  • Cistern Material: SUS304-2B Food Grade

  • Interior Thickness: 3.0 mm

  • Exterior Thickness: 1.0 mm

  • Discharge Diameter: 51 mm (National Standard/Non-Standard)


  • Insulation Material: 70 mm spray polyurethane + 10 mm plastic foam

  • Insulation Performance: Keeps the temperature within 24 hours at ±2-3°C

  • Cistern Seal: Seal head with thickness of 3.0 mm

  • Cleaning Method: CIP automatic cleaning, each compartment with 360-degree cleaning requirements


  • Chassis: Dongfeng D7 base, wheelbase 3800 mm, YCY30165-60 engine, 165 HP

  • Vehicle Model: National Development, Wanli Longxin transmission speed, 245/70R19.5 tires

  • Safety Features: ABS, air conditioning, electric windows


Notes:

  1. Open and clean after the tank is opened and a standard inspection is done, then fill the front of the compartment and ensure the water tank meets the required transportation standards for liquid quality and the necessary cleanliness.

  2. Cistern holds a capacity of 8500L.

  3. Rear operating gear is manually activated and properly fixed for safety.

  4. Each compartment has a valve installation to facilitate cleaning.


Introduction

The Chengli Fresh Milk Transport Vehicle is designed to meet the growing demands of the dairy industry, providing a reliable, efficient, and hygienic solution for transporting fresh milk. With the increasing need for temperature-controlled transportation, especially in the food and beverage sector, the Chengli Fresh Milk Transport Vehicle ensures the safe delivery of milk while maintaining its quality and freshness.

This article explores the design, specifications, benefits, and applications of the Chengli Fresh Milk Transport Vehicle, highlighting its importance in dairy logistics, and providing insight into why this vehicle is an essential asset for dairy producers, logistics providers, and distributors.


What is the Chengli Fresh Milk Transport Vehicle?

The Chengli Fresh Milk Transport Vehicle is a specially designed tanker truck used for transporting milk and other dairy products in bulk. Equipped with advanced insulation, hygienic material, and a high-capacity tank, this vehicle ensures that fresh milk stays at the required temperature throughout its journey from farm to dairy processing plants or retail outlets.

Key Features of the Chengli Fresh Milk Transport Vehicle:

  • Insulated Tank: Advanced insulation technology to maintain optimal temperatures for milk.

  • Food-Grade Materials: Built with food-grade stainless steel for maintaining hygiene.

  • Hygienic Delivery: Designed for easy cleaning and preventing contamination.

  • Large Capacity: Typically equipped with 8500L tanks for bulk milk transport.

  • Temperature Control: The vehicle maintains a stable environment to prevent spoilage and maintain quality.

  • Reliable Performance: Features such as high torque engines, heavy-duty axles, and durable construction ensure that the vehicle performs reliably even under demanding conditions.


Advantages of the Chengli Fresh Milk Transport Vehicle

1. Optimal Temperature Control

The Chengli Fresh Milk Transport Vehicle is equipped with high-quality insulation, which helps maintain the required temperature range for fresh milk during transit. This ensures that the milk remains fresh and free from bacterial growth, preserving its quality from farm to retail.

2. Food-Grade Construction

The truck’s tank is made of food-grade stainless steel, ensuring that it meets the highest hygiene standards. The materials used in the tank construction do not affect the milk's flavor, purity, or safety. Additionally, food-grade components ensure that the vehicle is easy to clean and maintain, reducing the risk of contamination.

3. Large Capacity for Bulk Transport

With its 8500L capacity, the Chengli Fresh Milk Transport Vehicle is capable of transporting large volumes of fresh milk, making it ideal for bulk milk transportation from farms to processing plants. This large capacity reduces the need for frequent trips, increasing efficiency and reducing transportation costs.

4. Enhanced Hygiene and Easy Cleaning

The Chengli Fresh Milk Transport Vehicle is designed with hygiene in mind. It features a CIP (Clean-In-Place) automatic cleaning system that ensures the vehicle is thoroughly cleaned after each use. This reduces the risk of bacterial contamination and keeps the milk fresh and safe for consumption.

5. Durability and Longevity

Built with heavy-duty materials, the Chengli Fresh Milk Transport Vehicle offers superior durability. Whether it’s used for short-distance urban deliveries or long-distance rural transportation, the vehicle's robust construction ensures long-term performance, reducing the need for frequent repairs and maintenance.

6. Reliable Performance

The Chengli Fresh Milk Transport Vehicle comes equipped with a powerful engine and efficient drivetrain. The vehicle’s 24V maintenance-free dual battery system and exhaust brake provide additional reliability, ensuring that it performs well under various conditions and delivers fresh milk on time, every time.


Applications of the Chengli Fresh Milk Transport Vehicle

The Chengli Fresh Milk Transport Vehicle is used in various applications within the dairy industry. Whether for transporting fresh milk from farms to processing plants or delivering dairy products to retail outlets, this vehicle provides a cost-effective, reliable solution. Below are some of the key applications of this transport vehicle.

1. Dairy Logistics

The Chengli Fresh Milk Transport Vehicle is primarily used for transporting milk from farms to processing plants. Its large capacity allows for the bulk transportation of milk, ensuring that the dairy supply chain operates smoothly and efficiently. It is also essential in maintaining milk's freshness during long-distance travel.

2. Fresh Milk Distribution

For dairy companies and distributors, the Chengli Fresh Milk Transport Vehicle is ideal for delivering fresh milk to retail outlets or consumers. The vehicle's ability to maintain the required temperature ensures that fresh milk reaches consumers in optimal condition, preserving its nutritional value and quality.

3. Bulk Milk Transport

This transport vehicle is used to carry bulk quantities of milk for processing or distribution purposes. The Chengli Fresh Milk Transport Vehicle is designed to handle large quantities efficiently, reducing costs and minimizing the number of trips required for transporting milk.

4. Cleanroom and Controlled Environments

For high-end dairy products, such as yogurt, cream, and other specialty items, the Chengli Fresh Milk Transport Vehicle provides the necessary environment to keep the product free from contamination during transportation. The hygienic construction ensures that no external contaminants can affect the milk, even when transported over long distances.

5. Dairy Industry Expansion

As the demand for dairy products increases globally, the Chengli Fresh Milk Transport Vehicle plays a crucial role in expanding dairy operations. It facilitates the transportation of milk across regions and even countries, helping dairy companies meet the growing global demand while ensuring quality is preserved during transit.


Technical Specifications of the Chengli Fresh Milk Transport Vehicle

SpecificationDetails
ModelChengli Fresh Milk Transport Vehicle
Tank Capacity8500L
Chassis ModelEQ1046SJ3CDF
Dimensions (L x W x H)6900 × 2350 × 2800 mm
EngineFull-Chai 162 HP
TransmissionFast 12-speed gearbox
Tank MaterialSUS304-2B Food Grade
Tank InsulationSpray polyurethane and plastic foam insulation
Cleaning SystemCIP automatic cleaning system
BrakesABS, air brakes
Fuel Tank Capacity350L
Battery System24V maintenance-free dual batteries
Safety FeaturesABS, exhaust brake, stability control
Tires7.50R16 steel wire tires

How the Chengli Fresh Milk Transport Vehicle Works

The Chengli Fresh Milk Transport Vehicle operates by using its powerful engine and hydraulic lifting system to transport large quantities of milk. The vehicle’s tank is insulated to maintain the milk’s optimal temperature during transport, while the interior is lined with food-grade stainless steel to prevent contamination. The vehicle also features a fully automated cleaning system that ensures cleanliness after every use.


Maintenance and Care for the Chengli Fresh Milk Transport Vehicle

Proper maintenance is essential for the Chengli Fresh Milk Transport Vehicle to function efficiently and maintain its longevity. Key maintenance tasks include:

  1. Tank Cleaning: Regularly clean the tank using the CIP system to ensure hygienic transport.

  2. Engine and Transmission: Perform routine checks on the engine, oil changes, and air filter replacement.

  3. Braking System: Inspect the ABS and air brakes regularly to ensure the truck operates safely.

  4. Tire and Suspension: Check tire pressure, tread wear, and suspension components to ensure stability during transport.

  5. Hydraulic System: Inspect hydraulic components for leaks or damage and ensure smooth operation of the lifting mechanism.


Conclusion

The Chengli Fresh Milk Transport Vehicle is a reliable, efficient, and safe solution for transporting milk and other dairy products. With its large capacity, advanced insulation, food-grade construction, and cleaning systems, it ensures that milk reaches its destination fresh and safe. This vehicle is an indispensable asset for dairy producers, logistics providers, and distributors seeking to maintain the highest quality standards while improving the efficiency of their supply chain.
